Name: Flexim FLUXUS Flow Meter for LNG and Cryogenic Fluids
Brand: Flexim

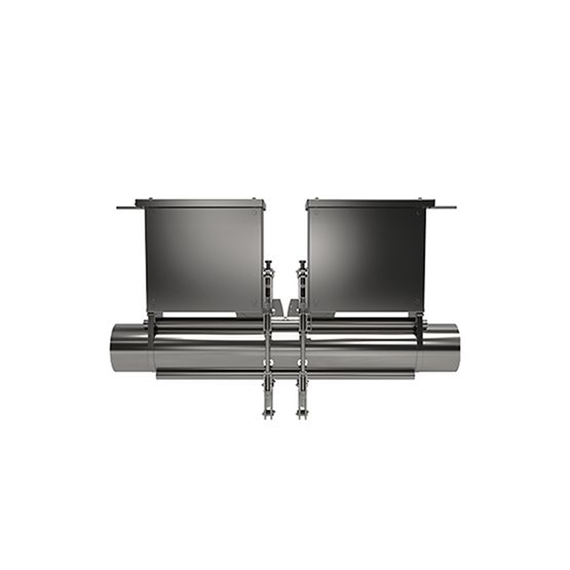

The Flexim FLUXUS Cryo non-intrusive ultrasonic flow meter is ideally suited to cover the highest flow rates of loading / off-loading processes as well as very low flow rates at when lines start or stop.

Capable to perform in various LNG and other cryogenic applications at temperatures down to -328 °C: from 3" lines in peak shaving plants to 36" pipes for tanker off-loading to storage tanks. These non-intrusive ultrasonic flow meters provide the ideal solution for all cases where reliable and trouble-free flow measurement of cryogenic fluids is required. With its huge measurement range FLUXUS Cryo is ideally suited to cover the highest flow rates of loading / off-loading processes as well as very low flow rates at when lines start or stop.

Flexim FLUXUS Flow Meter for LNG and Cryogenic Fluids

Specs

Flow channels

1 ( optional 2)

Measuring Quantities

Volume flow, mass flow, flow velocity

Process Media

Cryogenic Fluids (LNG, Liquid Ethane, Liquid Air, Nitrogen, Oxygen and others)

Range

Flow Velocity Range: 0.03 ft/s ... 80 ft/s

Accuracy

±0.5% of reading, ±0.01 m/s

Repeatability

±0.15% of reading, ±0.01 m/s

Process Temperature

Media Temperature: -310 °F ... +170°F

Operating Temperature

Transmitter: -40 °F ... +140 °F

Pipe Size

70 mm to 1000 mm

Certifications/Approvals

Transmitter: IP66, Transducers: up to IP68
Available Hazardous Area Classification (optional)
FM Class I, Div. 1 / 2; ATEX / IECEx Zone 1 / 2;

Communication Protocol

HART, Modbus RTU/TCP, RS485, Profibus PA, Foundation Fieldbus
USB and Ethernet interface for communication available

Input

Depending on selected transmitter: Up to 4 Inputs (temperature Pt100/Pt1000), current, voltage, binary

Output

Depending on selected transmitter: Up to 4 Outputs: (active/passive) current, voltage, frequency, binary

Features

Highly reliable:
Maintenance-free. No moving or vibrating parts
Dual-beam redundant measurements
Operationally safe: No gaskets, No leakage points
Economic:
No pipework modification necessary
One-man-installation without the need for lifting gear
No pressure loss - no chance for flashing
Advantages in Retrofit Applications:
No pipework necessary
No lifting gear required - independent of pipe size
FLUXUS Cryo can be mounted at limited space conditions, e.g. at FLNG loading arms
Installation is done within a few hours when the pipe is not cooled down
The measuring system is fully integrated into the insulation
Advantages in New Plants:
Highly cost-effective - only standard piping needs to be planned - FLUXUS Cryo fits
Late design changes aren‘t a problem! One equipment type fits many pipe sizes
No pressure-loss and thus no energy loss
No risk of flashing
Significantly reduced CAPEX, especially for large diameters
Global installation and support by Flexim
